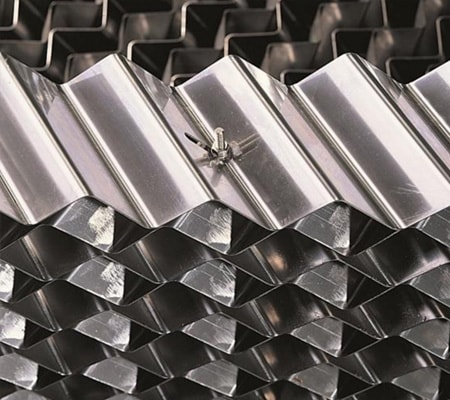

Grid Packing
The Finepac Grid Packing is an adaptation of the conventional structured packing which uses a smooth metal packing surface to eliminate areas on the packing where fouling can begin. These packings are developed for severe services susceptible to fouling, coking, erosion and applications involving high solid content.
Key Characteristics
- High capacity and low pressure drop
- High coking and fouling resistance
- Corrosion and erosion resistance
- Excellent mechanical strength
- Reduced installation and removal time
Applications
- Vacuum tower wash section
- Flue gas scrubber
- Ethylene primary fractionators
- Atmospheric column over flash section
- Ethylene water quench tower
| Packing Types | 40L | 64L | 64M | 90M |
| Specific Surface Area (m²/m³) | 40 | 64 | 64 | 90 |
Material of construction (MOC)
Stainless steel, Duplex Stainless Steel , Nickel Based Alloys.
Other materials available on request.
