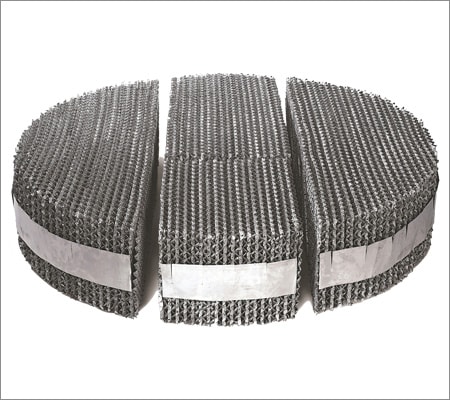

FP - Structured Packing
The FP-Structured Packing is a result of years of experience and development in the field of thermal fractionation using packings for mass transfer. This is a universal packing type suitable for a wide variety of applications and provides lower pressure drop per theoretical stage and increased capacity compared to trays and conventional random packing.
Key Characteristics
- Improved product purities and product yields
- Reduced reflux rations
- Pressure drop per theoretical stage of 0.3 – 1 mbar
- Maximum liquid load up to more than 200 m3/m2h
- Increased throughput
- High separation performance close to capacity limits
Applications
- Vacuum to moderate pressure
- Petrochemical columns
- High pressure for selected applications
- Refinery Columns
- Chemical Industry
- Natural gas drying with glycols
| Packing Types | Surface Area (m²/m³) | F-Factor | Number Of Theoretical Stages Per Meter (NTSM) |
| FP 1.25 | 125 | 3.5 | 1 |
| FP 1.70 | 170 | 3.0 | 1.5 |
| FP 2.00 | 200 | 2.7 | 2 |
| FP 2.50 | 250 | 2.2 | 2.3 |
| FP 3.50 | 350 | 1.8 | 2.8 |
| FP 5.00 | 500 | 1.5 | 3.8 |
| FP 7.50 | 750 | 1.2 | 4.5 |
Material of construction (MOC)
Stainless steel, High Nickel Alloys, Hastelloy, Titanium, Copper, Tantalum, Monel.
Other materials available on request.
